COLOER Brass Small Rectangular Flood Lights Outdoor with 2W 2700K Warm White LED G4 Bulb 12V Low Voltage Landscape Outside Lights for House Illuminating Signs Walls and Plant Material

- Unique Design: Enhance your outdoor aesthetics with this beautifully crafted landscape light made of die-cast brass. The fixture is rated IP65 weatherproof and complements the architecture of the surrounding area. With a superior corrosion resistance and pressure resistance, this outdoor flood light have longer service life and longer lasting than aluminum and plastic lamps. - Low Voltage Flood Light: The small size floodlight brass fixture is 4 inches wide and 3.8 inches tall. It has a G4 socket for easy bulb installation or replacement. This sophisticated bronze finish landscape yard light fixture operates with AC/DC 12V, posing no harm for children and pets in the surrounding area. Please note that this outdoor floodlight for your house must be powered by a 12-24V low voltage transformer which is NOT included. - Easy Installation: The floodlight has an adjustable cast brass knuckle with thumb screw and a ½" NPT threaded male hub on the bottom. The package comes with a PVC ground stake and 2 wire connectors. This floodlight comes with a 6-foot 18 AWG lead wire, which you can easy connect to an existing landscape system. A silicone plug at the lead wire exit prevents ground moisture from entering through the stem, reducing corrosion and increasing the fixture’s lifespan. - Wide Applications: Floodlights offer better security protection for your home's exterior than traditional bulb lighting by providing intense brightness over a wide-angle field of view. This flood light can also be used to create ambiance in a garden or be placed near an entryway, garage door, or an exterior wall. Flood lights brighten the way as you take out the trash or get home late at night. - Gentle Illumination - This compact brass fixture is ideal to softly illuminate small to medium objects and landscape features. An adjustable shade moves up and down to modify spread of light. The ceramic white paint under the shade provides for maximum photometrics. Includes two lenses (clear and frosted) that can be used to adjust brightness. COLOER landscape lighting offers a lifetime warranty on the light fixture and a 5 years for the LED bulb.

Product description

COLOER Brass Low Voltage Small Floodlight Light Outdoor

Small size brass floodlight

Replaceable light bulb design

IP65 weatherproof

Two lenses for choose

Wide applications

Wide-angle field of view

HOW TO INSTALL

HOW TO CHOOSE TRANSFORMER

COLOER Brass Outdoor Wall Wash Light for Illuminating Signs, Walls and Plant

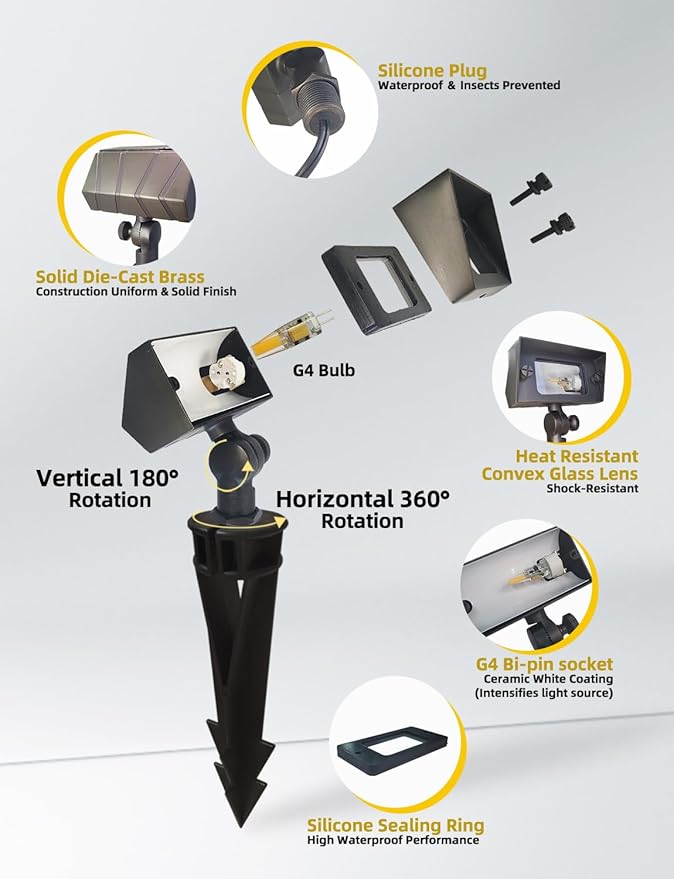

COLOER flood lights are made of die-cast brass. They have an adjustable cast brass knuckle with thumb screw and a ½" NPT threaded male hub on the bottom. They come complete with all the necessary accessories for easy installation and plug into your existing landscaping system.

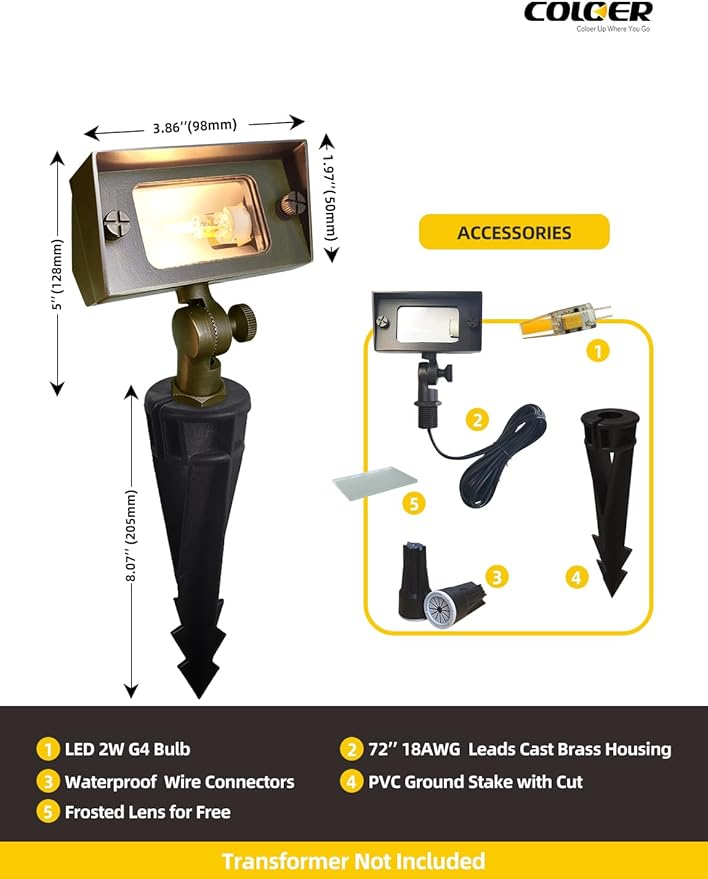

Small floodlight is 3.86 inches wide and 5 inches tall with a 6-ft 18 AWG lead wire. Two waterproof wire connectors and ground stake are also included

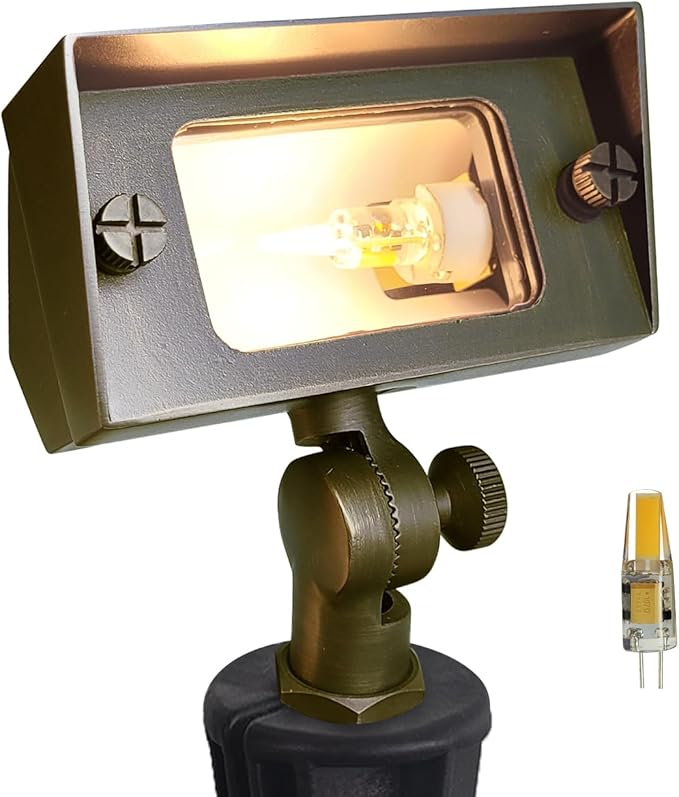

With a replaceable light source design and a G4 socket, you can easily install or replace bulb. The ceramic white paint enhances the lighting effect.

A silicone plug at the lead wire exit prevents ground moisture from entering through the stem, allowing this fixture to be used in humid environments.

Both frosted and clear lenses are included in the package. With these two options, a variety of brightness levels for the floodlight.

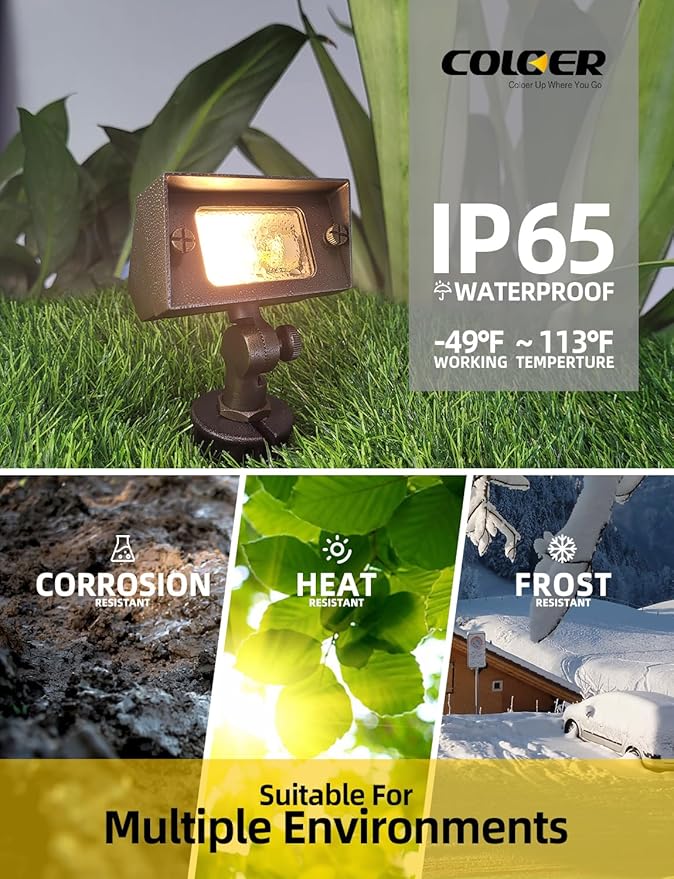

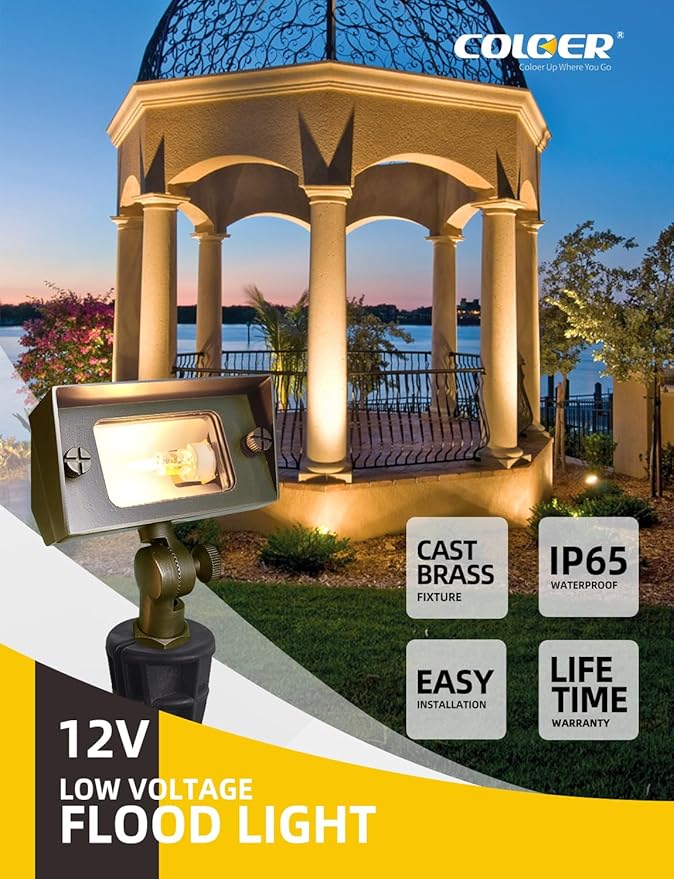

Floodlights are IP65 weatherproof and complement the architecture of the surrounding area. These lights can be used to create ambiance in the garden, or be placed near an entryway, garage door, or exterior wall. It will brighten the way as you take out the trash or get home late at night.

Floodlights offer better security protection for your home's exterior than traditional bulb lighting by providing intense brightness over a wide-angle field of view. This compact, cast brass fixture is ideal to softly illuminate small to medium objects and landscape features.

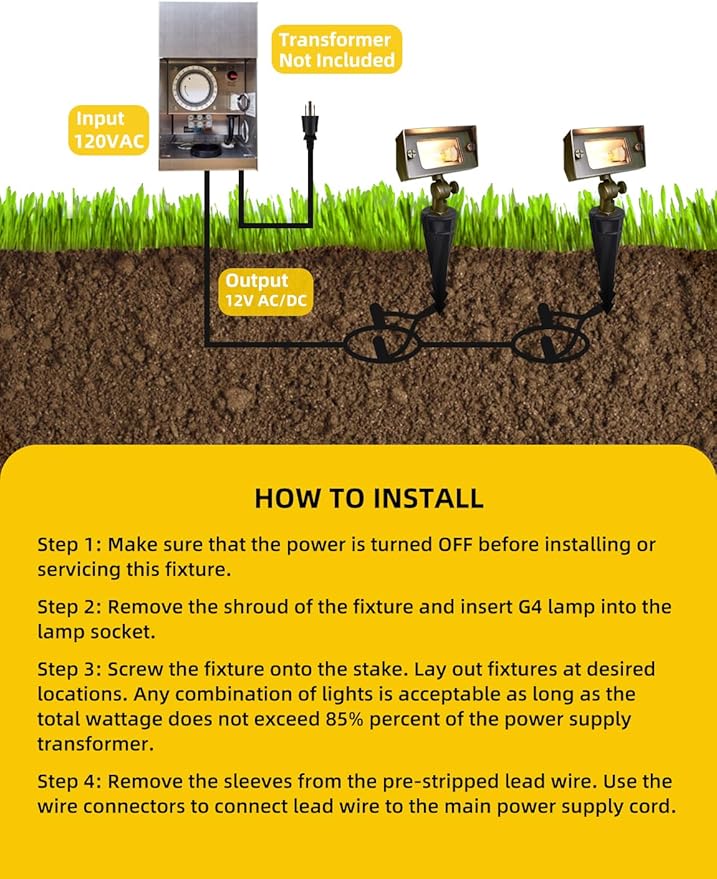

Step 1: Make sure that the power is turned OFF before installing fixture

Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 80% percent of the power supply transformer

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord

To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system. Then add 10% for low-voltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.

Select a transformer with a 20% higher capacity than the total wattage of all fixtures in the system. This will allow you to add more fixtures later.

COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination. We are a reliable partner to light your home!
