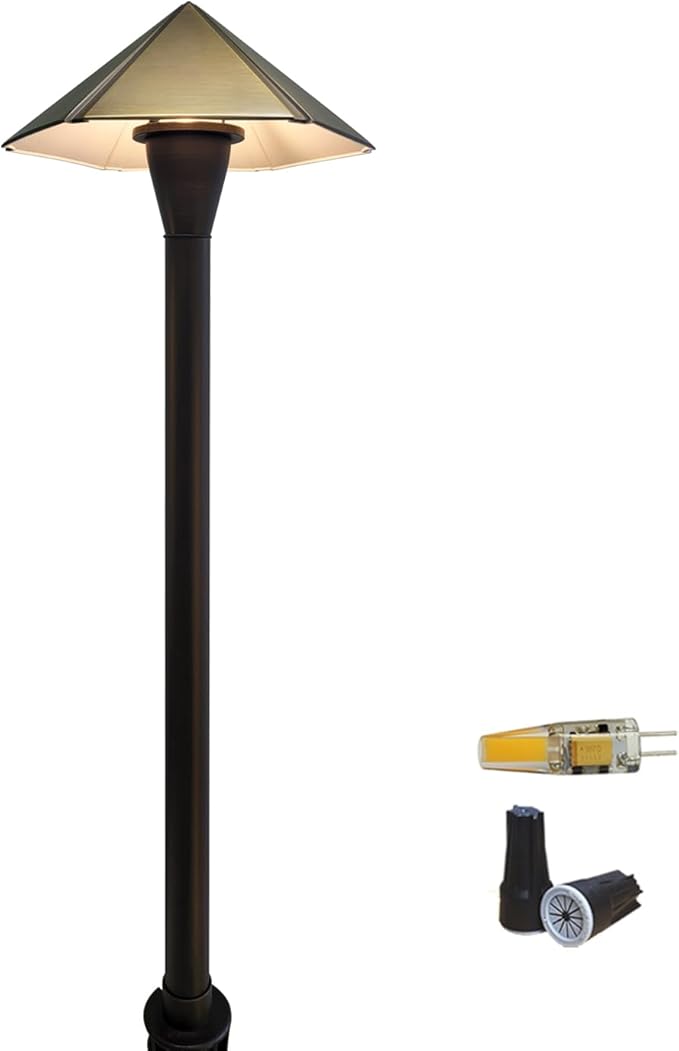

COLOER 12V Brass Outdoor Low Voltage Garden Path Lights for Outside(Bronze23.2 Tall 7.9 Shade) with 2W 2700K G4 LED Bulb(605B)

- Solid Heavy-Duty Structure: Cast brass path light measures 23.21 inches in height with a 7.87 inch diameter hat. The antique bronze finish solid brass housing ensures excellent corrosion resistance and heat dissipation, while the fine workmanship makes it tougher, harder, and aesthetically pleasing. Robust seal with O-ring design and silicone plug at the bottom to stop moisture from entering, suitable for wet locations. - Non-integrated Landscape Light: This path light uses a design that separates the light fixture from the bulb, allowing you to install bulbs with different color temperatures and hues according to your preference. With this non-integrated landscape light, you won't need to replace the entire fixture if the LED bulb fails. This means the streetlight has a longer lifespan, saving you time and money by reducing the need for frequent replacements and reinstallation of landscape lighting. - Low Voltage Path Light: This brass low voltage landscape path lights fixture is ETL Listed to guarantee customers' safety, no worrying about fire hazard. Operating at a 12V AC/DC working voltage, it is safe for children and pets in the surrounding area. This walkway light must be powered by a 12-24V low voltage transformer (not included). - Easy Installation: This sidewalk lights fixture with G4 bi-pin socket, compatible with G4 lamps up to 20W. One energy efficient 2W, CRI85+, 180LM, 2700K G4 LED bulb, 72" 18 AWG copper wire, one large PVC ground stake and two waterproof wire connectorsis included. Our professional-grade products are field-tested for durability and ease of installation. Even for those with no prior experience with low voltage outdoor pathway lights, installation is pretty simple. - Optimal Illumination: This landscaping pathlights with white ceramic coating under the lampshade brings better lighting and save energy. Our outdoor garden lights are suitable for flowerbeds,gardens, shrubs, ponds, walkways, driveways, patios or any yard area. We offer a lifetime warranty on the brass light fixture(painted finish is 10 years) and 5 years for the led bulb.

Product description

COLOER Brass Low Voltage LED Path Lights for Outdoor

HOW TO INSTALL

HOW TO CHOOSE TRANSFORMER

COLOER Low Voltage Landscape Path Lights for Outdoor

COLOER’s solid cast brass pathway light housing excels in corrosion resistance and heat dissipation. The fine workmanship of these lights ensures both durability and aesthetics. Proper hardscape lighting enables you to extend the use of your patio, walkway or driveway long after the sun goes down.

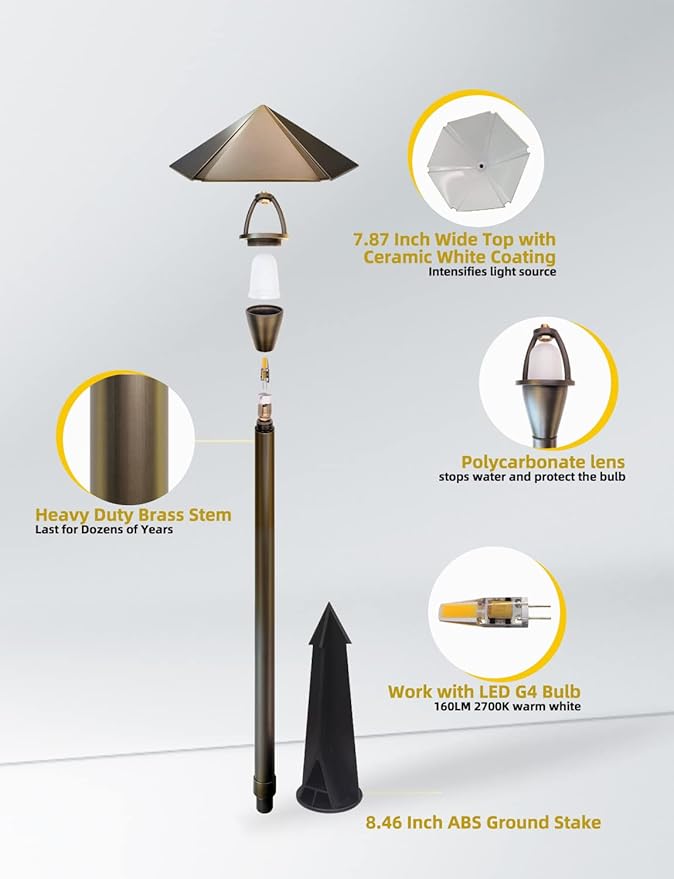

The 7.87 inch wide heavy duty brass top with ceramic white coating intensifies the light source and provides effective rain and dustproof capabilities

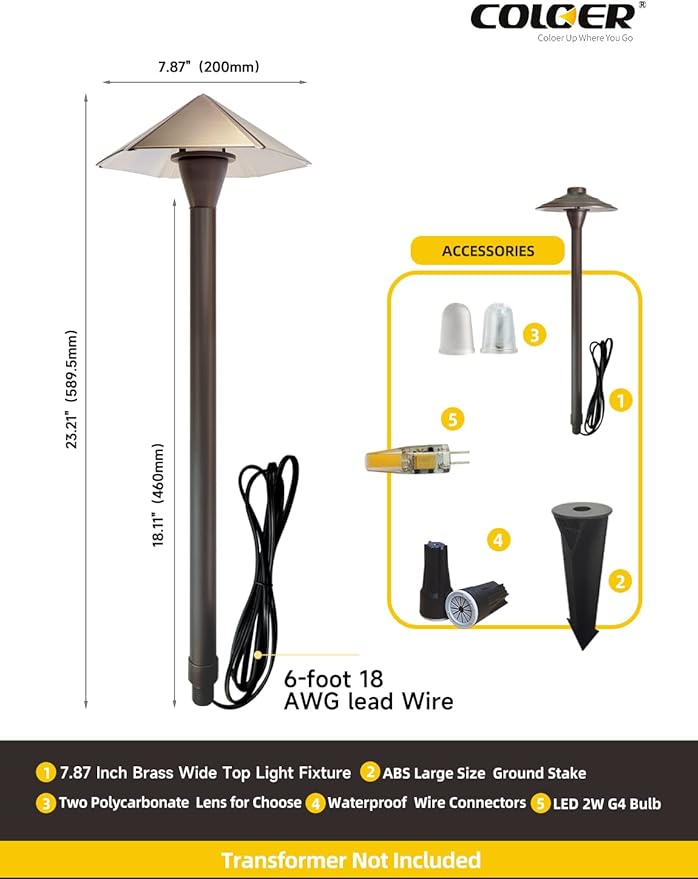

The total height of the brass fixture is 23.21 inches. The fixture is resistant to high temperatures and corrosion, with a 6-foot 18AWG UL listed wire

The polycarbonate lens stops water and protects the bulb. One additional free lens is available for replacement.

This pathway light fixture with a G4 bi-pin socket is compatible with G4 bulbs up to 20W, which you can easily install or replace.

This outdoor low-voltage landscape path light has many applications including: gardens, flowers, palm trees, alleys, loading docks, doorway, bus stations, streets, pathways, and parking areas. It's a good choice for your yard or garden applications.

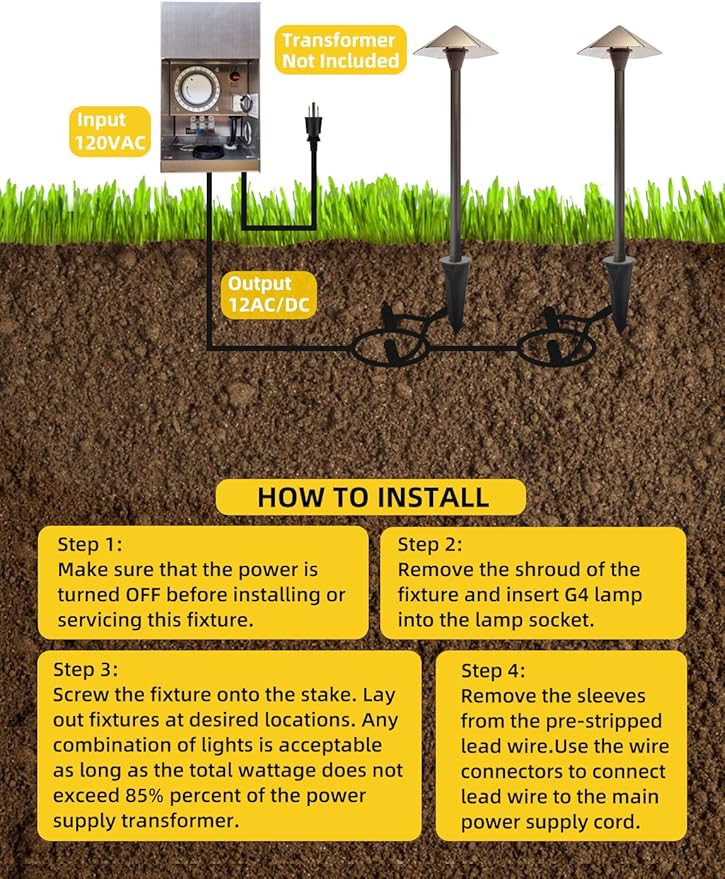

Step 1: Make sure that the power is turned OFF before installing fixture

Step 2: Remove the shroud of the fixture and insert G4 lamp into the lamp socket

Step 3: Screw the fixture onto the stake. Lay out fixtures at desired locations. Any combination of lights is acceptable as long as the total wattage does not exceed 80% percent of the power supply transformer

Step 4: Remove the sleeves from the pre-stripped lead wire. Use the wire connectors to connect lead wire to the main power supply cord

To determine the size of the transformer needed for a low-voltage lighting system, add up the wattage of all fixtures in the system. Then add 10% for low-voltage cable and fixtures connections.

If the total load of fixtures is too great, either divide the total load between 2 transformers or use a more powerful transformer.

Select a transformer with a 20% higher capacity than the total wattage of all fixtures in the system. This will allow you to add more fixtures later.

COLOER specializes in designing and manufacturing better and safer LED landscape lighting products. Our goal is to learn more about our customers' needs and create cost-effective lighting solutions beyond their imagination. We are a reliable partner to light your home!
